- Input Voltage : AC 110V and AC 240V (Two Selections), Output Voltage : DC 24V and DC 32V (Two Selections)
- Power Switch: ON/OFF indicator. Two kinds of voltage output: Hi & Lo
- SKP is kind of intelligence controller runned by power. Input of 100V-240V by AC power source lets 100V-120V and 220V-240V be acceptable. Smaller size, light weight and easy to use are SKP's singnificant features.
- SKP-32HL means two output 32V and 24V for users to choose. SKP-32VR means it can be freely adjusted, from output 32V to 24V, to meet the needs of certain work by users
- As voltage of SKP is adjusted to below 32V or at LO, the electric frequency will be lowered too so that the torque of electric screwdrivers can't be worked out except below scales of 4.
- Equipped with USA plug (equipped with Chinese 3-pin plug, UK plug or European plug etc

Common Characteristic

- Torque adjustable from 3~35kgf .cm (For Medium Torque Model SK-XX25LS/LSF, SK-XX35LS)
- Torque adjustable from 0.5~15kgf .cm (For Low Touque Model SK-2X5LS, SK-22X5LS)
- Torque accuracy + 5%
- Easy to operate, improve production efficiency
- High endurance and performance model. Outvalue its prices paid for purchase
- Fit for assembling common simple kits and products.
- Best fit for tapping screw operation
- Model for input voltage 110V/60Hz will start with SK- 21XX. 110V voltage input model has the same specification with 220V model listed below

Idly rotation prevents excessively tightening at the torque setting. Not fatigued with a long time work

Features

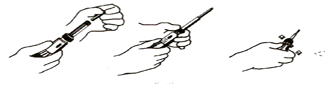

- Grip form without fatigued with a long time work
- Light and short, easily operated, and favorable sound and touch sensibility at idly rotation
- Set at required torque value and tightened, everyone can tighten in the same pattern
- Attained at specified torque, the clutch is released automatically, and idly rotated, therefore this action prevents excessively tightening
- (+) and (-) bit 1 piece respectively are attached Various box bits are prepared
- Used for both left and right turns
- Max. accuracy + 3% and 1 scale assured
