Features
-
Measurement available of static electricity ranging from low to high
potential.
- Provided with function to store and recall potential (Control
Availble of data after measurement)
- Measuring distance sensor provided
facilitates accurate measurement of potential
- Display of values can be
held to allow correct reading during measurement, since the hold function is
provided .
- Recorder and printer output terminals provided facilitate
control of potential data.
- Easy-to-operate high functional equipment small
in size and light in weight
Specifications
Detection Method:
Oscillation type surface potential sensor
Measuring Range:
+ 0.1kV ~ 50kV
Display Hold:
Automatic
(100mm)ultrasonic, automatic measuring type
Data Storage:
Max.
20 Points (Call & Display Time : ~ 2sec. Transmit Time: ~3 sec
Power
Supply:
2
pcs of size AAA alkaline batteries (continous use : 3.5H)
Dimension and
weight: 118 x 75 x 25 mm, 148g (batteries in)
Designed specially for use in measuring low static potentials which may measurement distance of 10mm enables this instrument to measure small areas measuring 20mm square. (Measuring Range + 1 ~ 5000V)
Dimensions: 117 x 70 x 24mm
Weight: Approx. 220g
Features
-
Capable of non-contact surface potential measurement
- Used for measurements
in hazardous environments (explosion class 2, ignition level G4) where a
flammable or explosive substance exists.
- Compact and portable – Ideal for
field use
Specifications
Reference Measurement Distance:
50mm
Measurement Range
:
+ 0.1kV to 19.9mV
Measurement
Accuracy:
+ 10%
|
Explosion Proof Digital Electrostatic Meter KSD-0108 |
Features
-
The potential of the human body (at fingertips) can be measured simply by
grasping the probe with hand.
- Switching between
peak hold mode & monitor (continuous measurement) mode.
- Measurements
can be performed with a wide range, up to + 999.9V
- High Resolution, such
as to within + 0.1V, is achieved. Slight
- Fluctuations in ground potential
can also be monitored
- AC power jack is available as standard equipment,
for convenience in evaluations and testing. (Adapter sold separately)
- Able
to combine with a recorder to continuously record changes in the potential of
worker during various operations
Specifications
Detection Method:
Vibration-type
surface potential sensor
Probe Capacitance: Under 20 pF
Disply: Digital
LCD
Measurement Range : + 0.1V to + 999.9V, Accuracy
within + 5%
Environment: 0
to 40 C, 65% RH or less
Options: AC
Adapter, Cable for connection to recorder
Power Supply:
Two AAA alkaline batteries (providing four or more hours of continuous operation)
Dimensions: Main
body 117 x 70 x 24mm, Sensor Unit 122mmx O23, Sensor Cable 800mm
Weight: Approx.
280g (Total)
|
Digital Electrostatic Meter KSD-0202 |
Features
-
Measures a very small amount of static electricity which may cause destruction
of semiconductor devices.
- Capable of non-contact potential detection and
measurement
- The sensor unit is separated from the display unit, thereby
making it possible to make measurement at narrow places and monitor the measured
data close at hand
- Can not only deal with small items but make potential
distribution measurements of
wide articles.
- The probe is com pact and
lightweight, and provided with hold memory push button.
- Covers a
measurement range of + 1V to 1999V
The coulomb meter is an instrument for precise numerical prediction of the damage caused to electronics devices by CDM (charged device model) situations and by small-capacitance discharge (discharge of charged suspended metal particles) due to friction and electrostatic buildup
Features
-
Easy Measurement of amount of discharge (excess dynamic charge) simply by
touching the object (conductor) to be measured
- Discharge of electronic
devices and printed circuit boards surrounded by high-potential space and
charged insulators can be measured
- Contact-type design for almost no
measurement error
- Peak hold and monitor (continuous measurement) modes
- Wide four-digit measurement range eliminates the need for multiple
instruments
- AC power jack supplied ad standard equipment, for convenience
in
- evaluations and testing. (Adapter sold separately)
- An optional
conductive probe chip is available, enabling safe and sensitive measurement of
products
- The optional DC power supply ZHO-200PN can be used to measure
device capacitance
Portable Charging Power Source to charge up to + 1000 volts to the measuring object. By charging the fixed voltage, it is easy to find out capacitance of measuring objects measured with NK-1001/1002.
Main Body: Output : + 600V ~1100V
semi-fixed
Power
Supply : Two AAA Alkaline
Batteries
Dimensions :
118 x 70 x
25mm
Weight
: 140g
Probe:
Dimension
: 140 x
120
Weight
: 20g

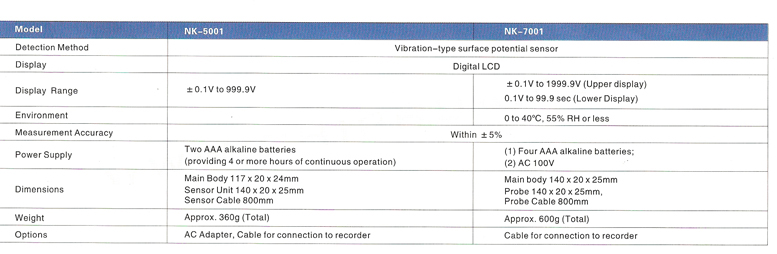

The remarkable decline in resistance to static charge of semiconductor divices occasioned by greater densities and higher integration levels has increased the probability of static charge-induced damage due to slight voltage differences occurring at the workbench. The Workbench Monitor is an instrument for precise measurement of slight fluctuations in bench surface potentials
Features
-
Potential measurement sensitivity is a high + 0.1V, making it ideal for
monitoring electrical potentials at the surface of facilities for production of
GMR heads in hard disk drives and in ultra-fine VLSI assembly processe
-
Probe-Type design enables measurement of potentials anywhere on the production
line
- Stable indications are obtained upon impedance switching within the
probe
- Switching between peak hold and monitor (continuous measurement)
modes
- AC power jack available as standard equipment, for convenience in
evaluations and testing. (Adapter sold separately)
- Since an internal
combination band and strap is provided, there is no need to bother about a cable
during transport
|
KSD-0200
is simple version of charge plate monitor. It has the Dimensions 130 x 70 x 20mm |
Features
-
Separate small-size sensor probe enables evaluation of ionizer effects in tight
areas; data is displayed on the main unit.
- Static charge for roughly the
same electrostatic capacitance as the divice can be measured.
- Compact,
portable main unit is easy to carry around work areas.
- Resolution to +
0.1V, enabling evaluation and control of ion balance.
- Decay time displayed
; two setting stages available.
The Air-ion monitor is capable of precise numerical prediction of the damage to an electronic divice due to CDM (charged device model) situations caused by ion blow and the static charge of peripheral objects
Charge Plate Stainless Steel, 20x20mm, capacitance approx. 10
pF
Decay Characteristic 1. Time from 1000V to
100V.
2. Time from 200V to 20V
