static air gun

GH-01X, GH-02X Features

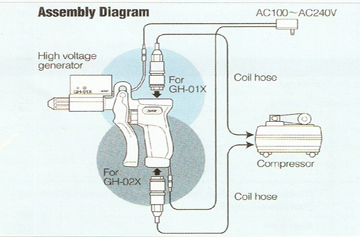

- This product is a combination of an electrode (gun) and a high voltage in one. Great safety and size reduction have been achieved through the adoption of a low voltage wiring .
- This static eliminator can be readily used simply by connection it to the power through the dedicated adapter and connecting the air hose to the compressor .
- Not only is this product compact and lightweight (260g) but it is suitable for extended periods of use because of the integrally-molded air gun ultra-compact high voltage generator. (Suspended system, light trigger push system,etc.)
- Generates only a small amount of ozone

Applications
Removal of static electricity and dust from
- The surfaces of the material to be coated.
- Parts and casings in the assembly process.
- Resin products during molding and processing.
- Glass products during processing.
- Plate-like, irregular, and plastic products
This product is not explosion-proof construction and should never
be used in hazardous environment.

Model GH-01X is prepared for use in clean room
Model GH-02X is designed for use in general environment

GI-04B
- Remove static electricity and dust. Work together with 594- MR.

594-MR
- Dimension : 120 x 98 x 180 mm.
- Weight : 4.8kg

Static Eliminator Air Gun GH-01
Suitable for electrostatic elimination and dust removal for plastic molding products, glass, wooden products and so on.

Features
- Compact design and light weight (320g) for easy operation.
- Built-in high voltage power pack eliminates need for a separate power source (just plug it in)
- Stainless steel electrode housing keeps the electrode free from breakageand dust/debris built-up
- Provide the capacity, with smaller working air pressure, equal to that of a conventional large-size gun.
- Integral holder allows the gun to be counter-balanced, preventing the nozzle from being damaged.
- Wide range input voltage 100-240V with the universal AC power supply .
- Integral grounding connection insures operator safety from shock
