Radial Trimmer / Former for Taped Components Ebsomat 300
    The Ebsomat 300 is specially designed for efficient processing of taped components. Even with manual operation 10.000 pieces per hour can be processed. For maor effcient processing of taped components, it canbe retrufitted with a motor-drive kit for fully automatic operation
 - Easy tape inserting
 - Safety tape feeding
 - Modular displacement
 - Tape height infinitely adjusttable
 - Easy tool change
 - Lead size adjustable
 - Maintenance - free
 - Tooling also available as customers specification

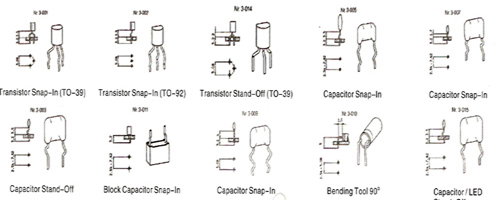

 - Component Specifications
     - Stand-off / Snap-In / In-Line
     - Enlargement or reduction of pitch dimension
     - 90 bend
     - Lateral Kinks, Pole-Protection Kinks Many More Available
Order Code : Ebsomat 300











Manual Version Features



 - Presettable Counter
 - Electronics Overload Protection







Output : 16,000 pcs/Hr (Motor Drive )
Output : 10,000 pcs/Hr (Manual )



Tools for ATC-300 for processing of radial tape components
Axial Trimmer / Former Ebsomat 400
Motor - Drive Version Feature





Manual-Model



Order Code : Ebsomat 400













     This new progressive and universal to use nachine is suited for the progressing of axial components. Trough manual operation it is possible to reach a production - speed of circa 10.000 component / hour
Motor-Drive
For treating even more components the Ebsomat 400 can be fitted with a motor-drive. There with you are able to increase the capacity to 14,000 components / hour.
     - No Mechanical stress of components due to interchangeable cutting, bending and forming
     - Gradual adjusting of the cutting units realizes an "over-bending" of the wire-componentsby more than 90 respectively 180
     - The bending components are supplies with a special roller design, so that the component cannot be damage by over-bending
     - pitches and length of the lead can be adjusted gradually
     - Already the standard tooling allows the processing of the components either in Horizontal or vertical mode
     - Gradual adjusting of speed
     - Output : 14,000 pcs / hr (Motor), 10,000 pcs / hr (manual)
 Technical data
    Dimension(LxWxH)          :          500x300x400mm, 28kg
    Pitches                                :          7.5 - 50mm.
    Diameter                             :          0.4 - 0.8mm. (Option 0.9 - 1.0mm)
