This new bit guide leads the screwdriver bit to the center of the screw head. It will improve productivity.
With a sliding adjustter, the bit size can be change

NSR (Automatic version)
To meet the change of the screw, just replace the rail and the escaper. The sticking grease on the rail can be wiped off by pulling it out from the rear side of Quicher.
A screw existence signal is attached to the screw pick out section

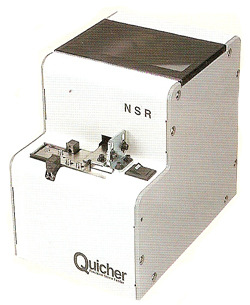

Quicher NSR
- Applicable screw size from M1.0 to M3.0
- Applicable screw length : up to 20mm.
- Scooping chamber Capicity : 80cc.
- With protection and recovery circuit

The standard screwdriver bits on the market can be used
- The suction type screwdriver
   - The bit type screwdriver.

Capable of loading large stock screws
   - Up to 150cc. screws can be loaded.

Copes with special screws
   The screw assembled with washer or SW can also be coped.
   It handles the screw size of up to M5.0 It is quipped with an overload reveres Protection circuit.

The rail is replaceable

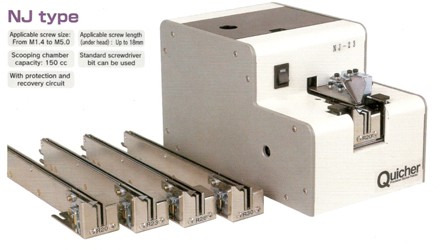

   It copes with the verious sizes of screws. Model NJ-23 handles four sizes of screw.

By connecting with Nejikura long priod of time operation is vailable
With a hopper installed, unmanned operation for the long period is vailable

Smooth screw feeding
The screw can be supplied without failing to keep up the robot's operatio. It is equiped with an overload reveres protection circuit.
A screw exstence signal is attached to the screw pick out section

- Applicable screw size:
from M1.0 to M3.0

- Applicable screw lenght
(under head) up to 20mm.

- Standard screwdriver bit can be used

- Scooping chamber
capicity : 80cc

- With protection and recovery circuit
- Supplied with a Bit Guide

It carries screw smoothly.
Increased durability and long life is assured.

Easy to replace rail
It is easy to replace the rail to meet the change of screws

- It is compact and space saving
- With installation of Nejikura, the large stock of screw can be loaded.
- It is equipped with an overload backstop protection circuit.

One Quicher can cope with eight different size of screws.

<Modification on screw feeding section>
     The Load on the motor is decreased and efficiency of the screw alignment is increased
<Adjustment of rial angle>
     The tilting angle of the rail is adjustable according to the screw size to be used.
<Adjustment of amplitude>
     The amplitude is adjustable to suit the screw size to be used.
<Without rolling>
     The rolling of the rail is eliminated and the screw are carried smoothly.

The NS series cope with eight different size of scrw just by replaceing the rail 8 (size from M1.0 to M3.0)
